A river table can begin with a breathtaking olive wood slab, but the mold decides whether that beauty stays crisp at the edges or ends up trapped behind leaks, drips, and hours of cleanup. This resin table mold comparison looks at the forms makers actually use for live edge projects, from practical melamine boxes to reusable HDPE systems, so you can choose the right foundation before mixing a single batch of epoxy.
The best mold is not automatically the most expensive one. It is the one that fits the scale of your slab, the depth of your pour, the number of tables you plan to make, and the finish you expect when the form comes off. A one-time rustic coffee table and a repeatable furniture-building workflow call for very different choices.

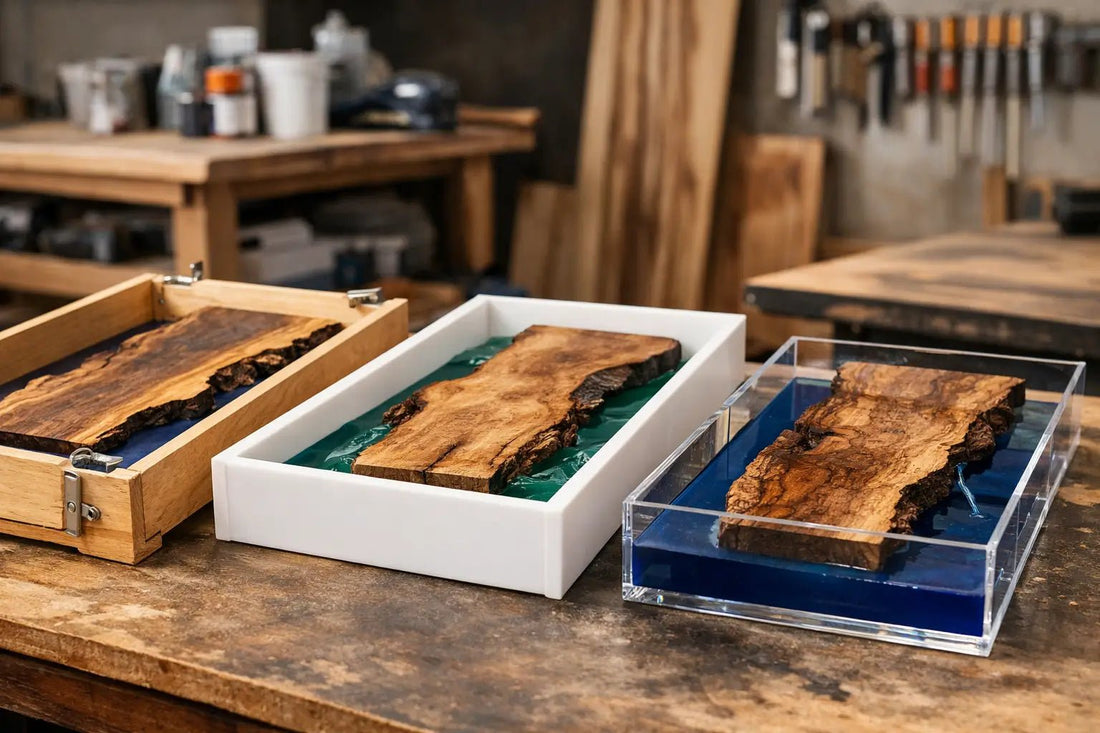

Resin Table Mold Comparison: The Four Main Options
Melamine-coated particleboard: the accessible first mold
Melamine-coated particleboard is where many first-time river table makers begin. It is widely available, easy to cut into custom dimensions, and inexpensive enough that a beginner can make a dedicated mold for one special slab without treating the build like a major equipment purchase.
Its smooth coated surface releases epoxy better than raw plywood, especially when paired with quality packing tape or mold-release tape. For a rectangular coffee table, desk, or dining table with straight outer edges, a carefully assembled melamine mold gives you control over the final shape while keeping material costs sensible.
The trade-off is that melamine is not naturally leak-proof. Every inside seam needs to be sealed, usually with silicone caulk, and every screw hole is a potential escape route. Particleboard also swells if moisture reaches an exposed cut edge. If you are pouring a deep river between two irregular live edges, take the time to seal the mold walls, the base, and every place where wood meets the form.
Melamine is best for makers who need a custom size, plan to build one or a few tables, and do not mind some sanding or machining after demolding. It is less appealing when you want to reuse the same form over and over again.
HDPE: the reusable choice for serious pours
HDPE, or high-density polyethylene, is the material many experienced epoxy furniture builders prefer. Epoxy does not readily bond to it, so a properly built HDPE mold can release a cured tabletop with minimal force and very little residue. Its nonporous surface also stands up to repeated use far better than a melamine box.
For makers building multiple river tables, HDPE can save time with every pour. There is less taping, less scraping, and less concern that the mold base will absorb moisture or deteriorate. The material is especially useful for deep-pour projects where a leak would waste a large volume of epoxy and potentially ruin a rare slab with dramatic grain or bark pockets.
The higher upfront cost is real. HDPE sheets are more expensive, and cutting or machining them cleanly may require better tools than a basic DIY setup. HDPE is also flexible in thinner sheets, so a large mold needs a strong frame or bracing underneath. A flat, rigid base matters as much as the mold material itself. If the form bows under the weight of resin, the finished table may not sit flat.
Choose HDPE when repeatability matters, when you pour frequently, or when you are working with premium live edge slabs that deserve the confidence of a dependable form. It is an investment in cleaner production, not a shortcut around careful setup.
Silicone molds: excellent for small pieces, limited for tables
Silicone has a deserved reputation for easy release. It is flexible, nonstick, and ideal for coasters, serving boards, small side-table inserts, and decorative resin pieces. For compact projects with a defined shape, silicone can produce smooth edges with very little finishing work.
For full-size resin tables, however, silicone is usually the exception rather than the answer. Large silicone molds are costly, heavy, and difficult to keep perfectly level. Their flexibility can become a problem under the weight and heat of a substantial epoxy pour. A mold that shifts even slightly can leave an uneven thickness or distorted perimeter.
Silicone is worth considering for smaller statement pieces where the mold itself creates the design: a rounded coffee table top, a resin-and-burl accent panel, or a batch of coordinated home accessories. For a custom live edge dining table, rigid panels will usually give you more control.
Plywood forms with tape: flexible, but preparation-heavy
Plywood forms covered in packing tape or specialized release tape are common in workshops because plywood is strong, easy to source, and simple to screw together. They can be built in nearly any dimension and braced aggressively for wide slabs or thick castings.
The key word is preparation. Bare plywood is not suitable for an epoxy mold. Resin can bond to the grain, find gaps at the seams, and create a frustrating demolding job. The tape must be applied without wrinkles, overlaps, or exposed edges, and the corners must still be sealed. A single crease can transfer into the cured resin as a mark that later needs sanding.
This option can be a smart middle ground when you need a large, sturdy custom form and already have sheet goods in the shop. It is not as naturally clean-releasing as HDPE, but it is often stronger and more forgiving than inexpensive melamine for oversized builds.
Match the Mold to the Table You Want to Build
A mold should follow the project, not the other way around. For a shallow flood coat on a wood tabletop, almost any flat, sealed form can work because the resin volume is modest. For a deep river running through a thick live edge slab, the stakes rise quickly. More epoxy means more heat, more pressure on seams, and more money at risk if a corner opens overnight.
Consider the shape of the slab as well. Straight, squared lumber works easily inside a rectangular form. Wild olive wood, burled sections, and natural live edges need more attention. The slab must be secured so it cannot float, shift, or twist as epoxy fills the void. Allow enough room around the outer edge to trim the final tabletop cleanly, especially if the bark line is irregular.
Depth is another deciding factor. A mold for a 1/2-inch decorative fill does not need the same bracing as a 2-inch deep pour. Follow the epoxy manufacturer's pour-depth guidance, and do not assume a thicker mold wall makes the resin safe from overheating. Resin chemistry, room temperature, pour volume, and pigment load all affect the result.
What a Good Resin Table Mold Must Do
Material matters, but the build quality matters just as much. A successful mold has a dead-flat base, rigid sidewalls, sealed seams, and a release surface that will not bond to epoxy. It also needs enough clearance for clamps, leveling shims, and the occasional unexpected adjustment.
Before you place the slab, run a simple water test if the form is new or if you have sealed fresh seams. Water will reveal obvious leaks without risking a costly pour. Then dry the mold completely. Even a small amount of trapped water can cloud resin or interfere with adhesion around voids in the wood.
Use a level across the mold in several directions, not just from end to end. A table can look level while still having a low corner that pulls resin deeper on one side. Support the form from underneath rather than trying to correct a sag with shims only at the corners.
For live edge work, seal the wood before the main pour when the slab contains cracks, open grain, or punky areas. A thin seal coat helps prevent bubbles from rising out of the wood during the deeper pour. It also protects the visual clarity of the resin, allowing the natural figure of the slab to remain the focal point.
The Cost Question: Save on the Form, Not on the Setup
A budget mold can produce a beautiful table. Many memorable pieces begin in a carefully taped melamine or plywood box. But saving money on the material should never mean skipping the details that prevent failure: bracing, seam sealing, level checking, and a proper release layer.
If you make one heirloom table from a singular slab, a custom melamine mold may be exactly right. If you build tables for clients, markets, or a growing furniture business, reusable HDPE forms often earn back their cost through faster turnaround and less wasted material. The best choice depends on how often you will use it and how much certainty the project demands.
Let the wood lead the design. A mold is only a temporary frame, but it gives raw resin and natural grain the space to become something lasting. Build it with patience, test it before the pour, and your finished table will carry the honest character of the slab rather than the scars of a rushed setup.
